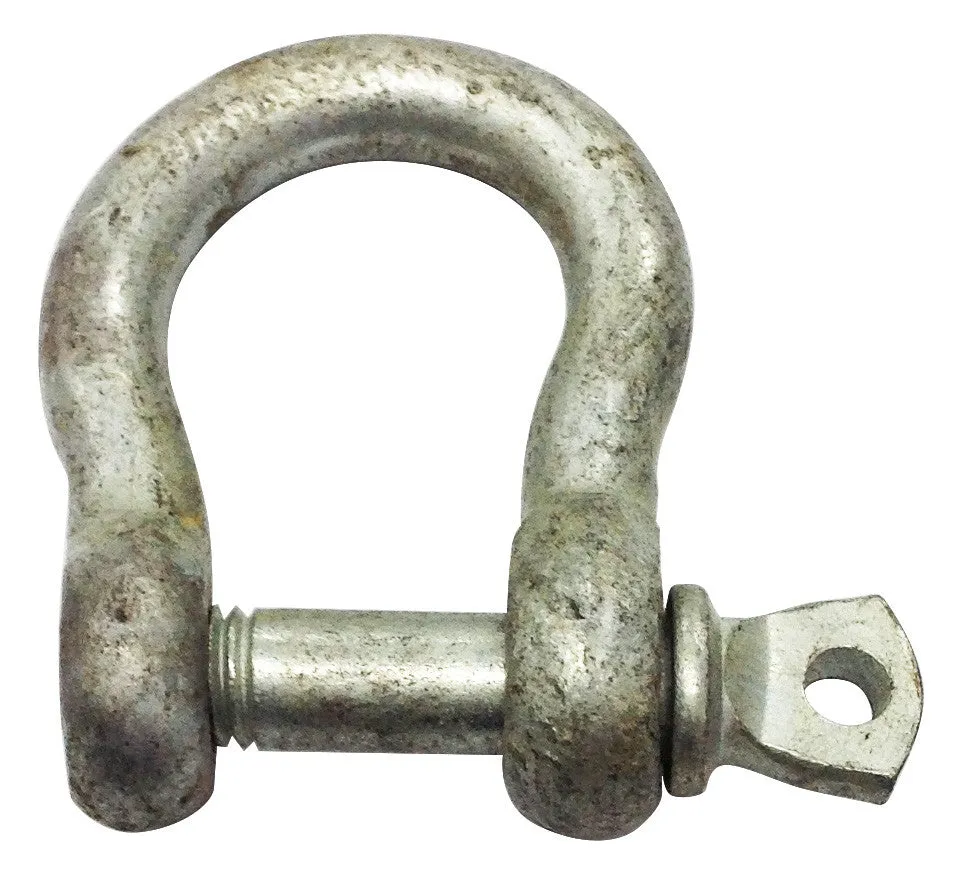

Galvanized steel commercial grade Bow shackles. Not load rated.
Hot dip galvanizing for maximum rust protection.

DIMENSIONS:
6MM Bow SHACKLE:
Pin Diameter: 6mm
Max Internal Width: 18mm
Internal Length: 27mm
Overall Length: 43mm
Overall Width: 36mm
Opening Width: 11mm

DIMENSIONS:
8MM Bow SHACKLE:
Pin Diameter: 8mm
Max Internal Width: 24mm
Internal Length: 31mm
Overall Length: 51mm
Overall Width: 46mm
Opening Width: 15mm

DIMENSIONS:
10MM Bow SHACKLE:
Pin Diameter: 10mm
Max Internal Width: 29mm
Internal Length: 32mm
Overall Length: 56mm
Overall Width: 53mm
Opening Width: 18mm

16MM Bow SHACKLE:
Pin Diameter: 16mm
Max Internal Width: 54mm
Internal Length: 68mm
Overall Length: 104mm
Overall Width: 88mm
Opening Width: 32mm
